EXTRALITE Thru Axle Black Lock 12.2B | 12×148 mm for Specialized X-12 BOOST

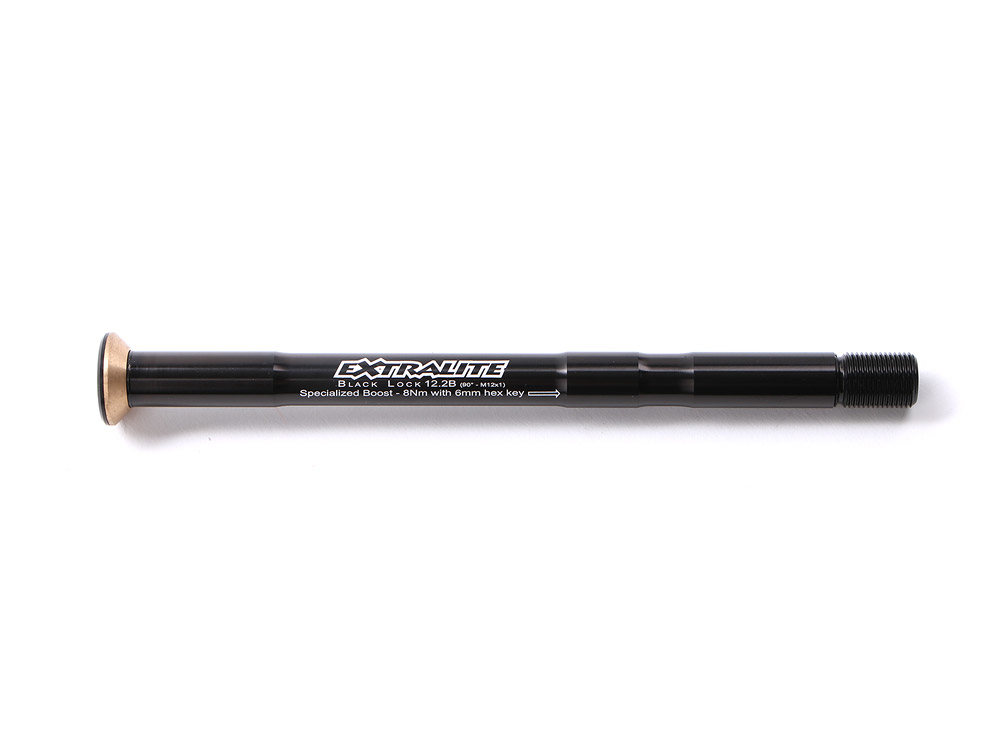

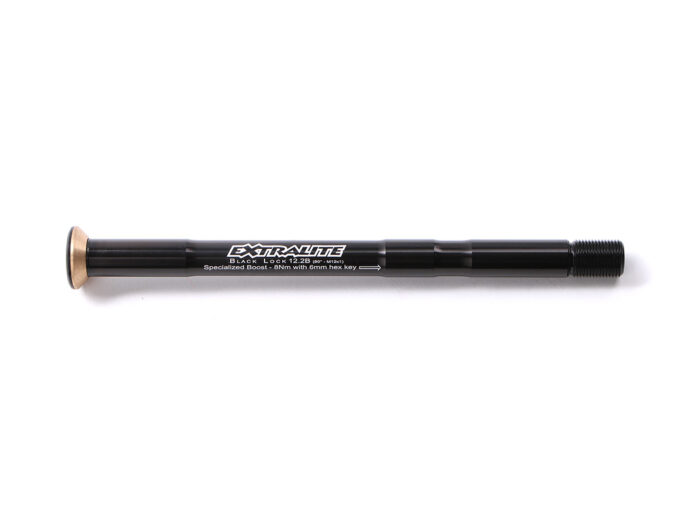

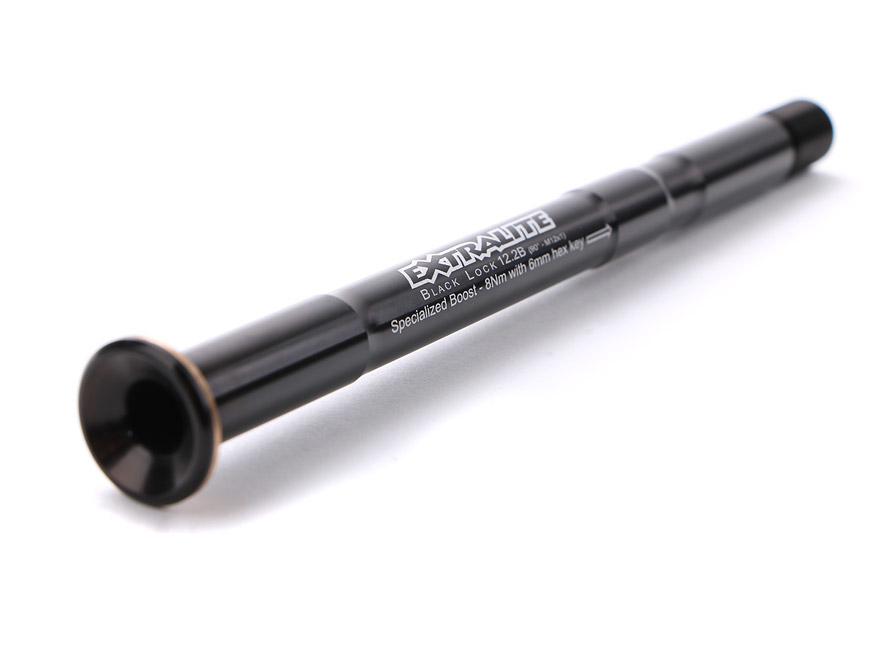

Following the super light BlackLock QR12 axle n, Extralite is adding a Boost compatible series to its portfolio. A thru axle with 12 mm diameter, which is used in Boost rear suspensions with 148 mm installation width. The axle is CNC machined from one piece of 7075 aluminum, butted several times and then black anodized. To reduce the weight as much as possible, the tool holder moves to the right side. Due to the threaded part, the already reinforced side is ideally suited for this.Technical specifications:
Material: 7075 T6 aluminum
Hub standard: QR12 (12 mm thru axle with 148 mm mounting width)
Compatibility: Frame with E-Thru dropouts
Axle length: 166 mm (without head)
Axle diameter: 12 mm
Thread length: 17.2 mm
Thread pitch: M12x1,0
Tool holder: 6 mm hexagon socket
Color: Black
Weight: 31g (manufacturer)
Delivery: 1x Extralite BlackLock thru axle
quick start Guide
Extralite BlackLock | EN
