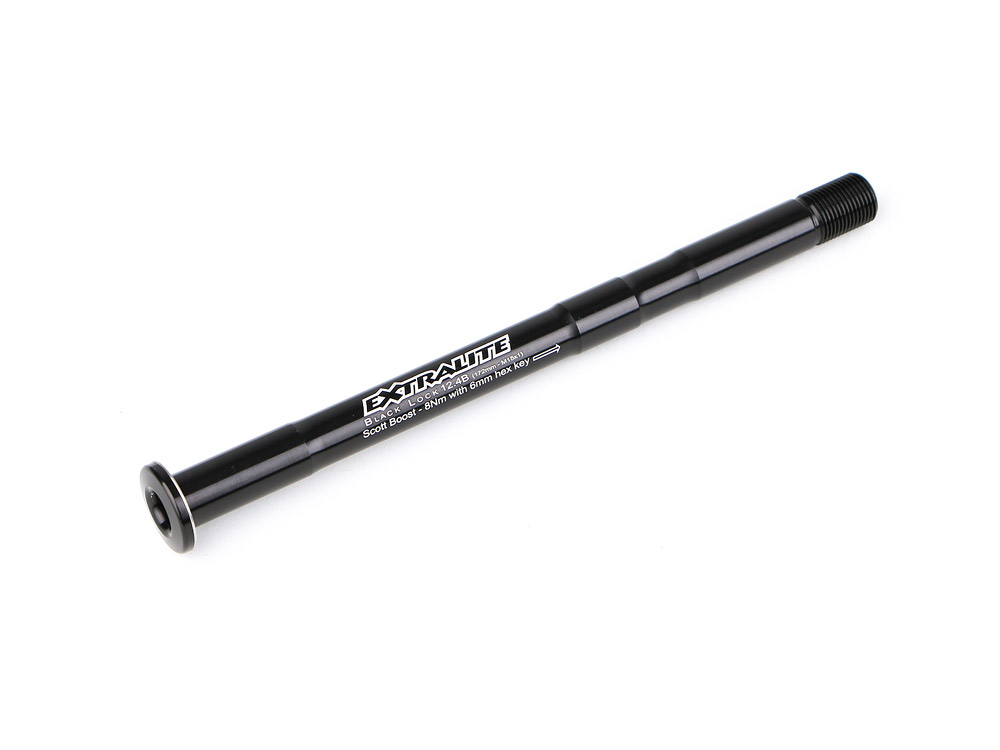

EXTRALITE thru axle Black Lock 12.4B | 12×148 mm for SCOTT BOOST / Cannondale F-Si
After the super light BlackLock QR12 axle , Extralite extends its portfolio with a Boost compatible series. A thru axle with a diameter of 12 mm, which is used in Boost rear triangles with an installation width of 148 mm. The axle is CNC-milled from one piece of 7075 aluminum, butted several times and then black anodized. To lower the weight as much as possible, the tool holder moves to the right side. The threaded part makes the already reinforced side ideal for this.Technical specifications:
Material: aluminum 7075 T6
Hub standard: 12×148 mm thru axle Boost, Cannondale Ai (2019)
Compatibility: Frame with Scott dropouts (Boost), Cannondale F-Si model year 2019
Axle length: 172 mm (without head)
Axle diameter: 12 mm
Thread pitch: M12x1.0
Thread length: 17.2 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
Max. permissible torque: 8 Nm
Color: Black
Weight according to the manufacturer: 29g

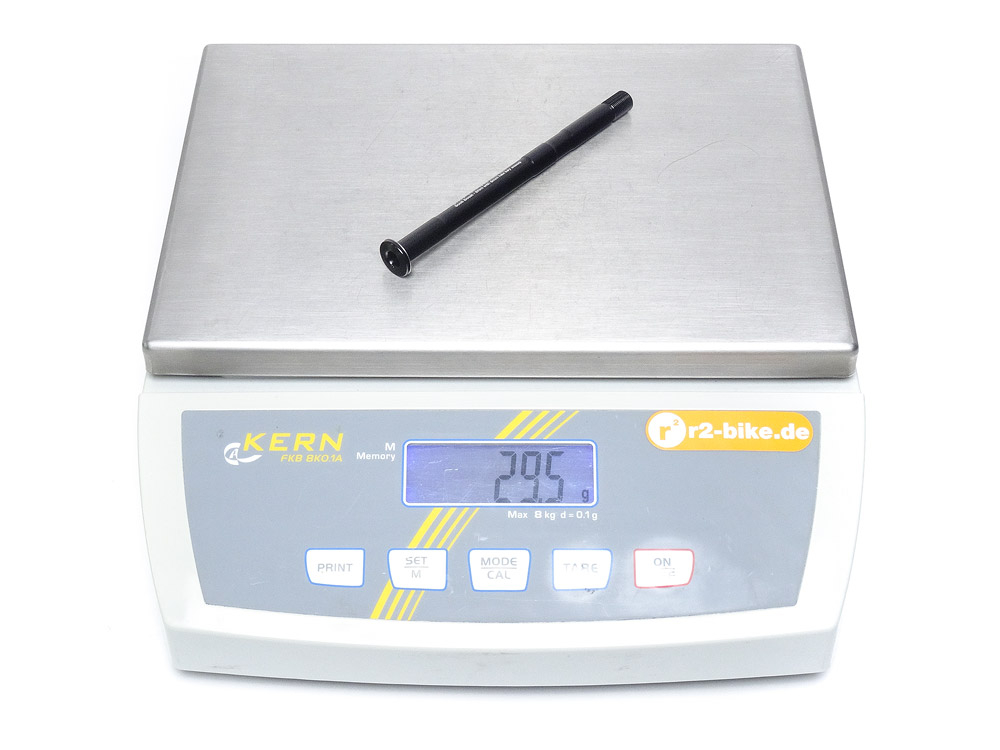

Weight weighed: 29.5gScope of delivery: 1x EXTRALITE thru axle Black Lock 12.4B | 12×148 mm for SCOTT BOOST / Cannondale F-Si
