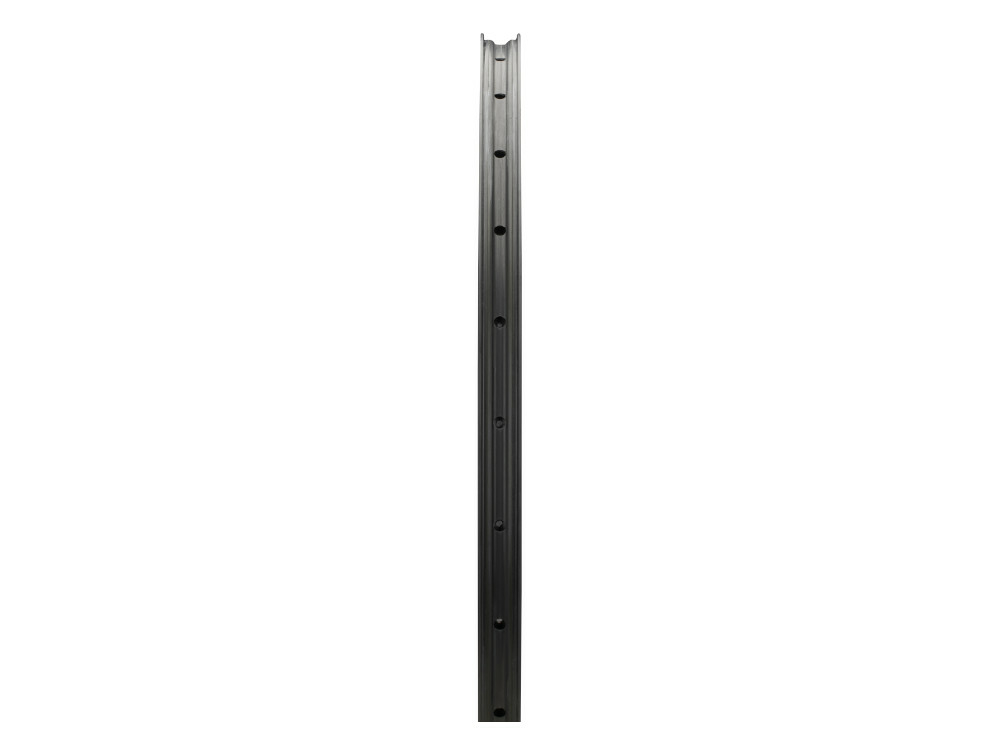

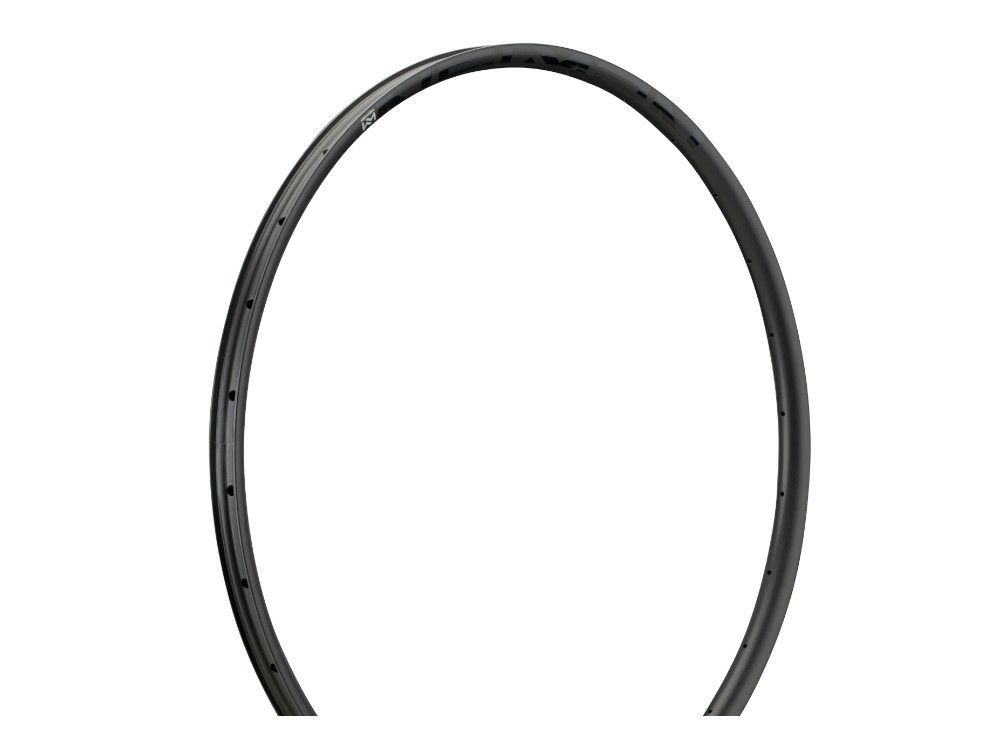

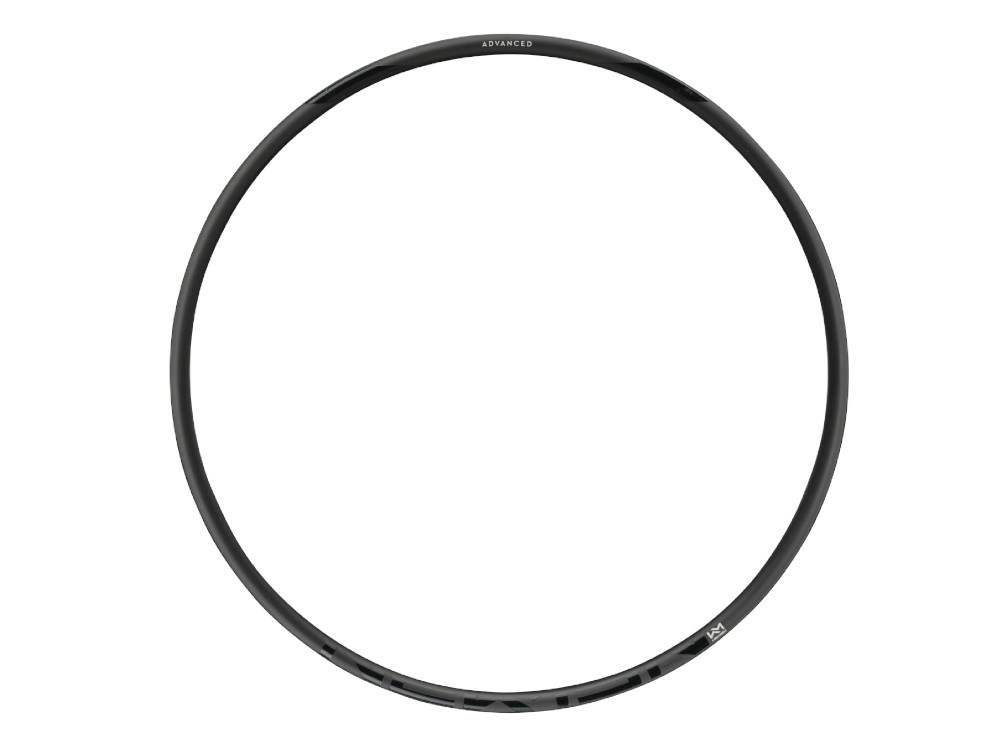

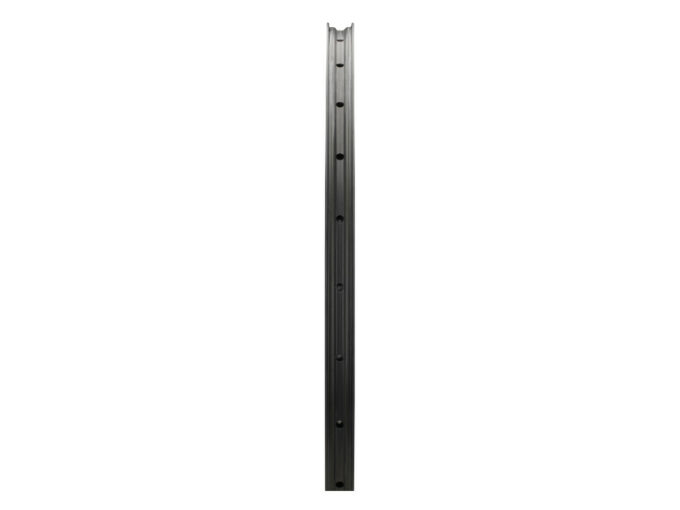

NEWMEN rim 29″ Advanced SL XR25 Carbon Gravel | 28 holes
Like all Newmen carbon rims, the Advanced SL XR25 impresses with first-class mechanical properties and very low weight and is the ideal basis for a light Gravel wheelset.
Due to the hookless construction, it is predestined for tubeless use. The significantly reinforced rim flange withstands possible punctures better and allows driving with little air pressure. In order to avoid weak points and to increase the service life, the spoke holes were drilled in a special process without damaging the structure of the carbon fibers. The inner width, which is generous for Gravel rims, also gives wide tires a reliable hold. The shape of the tire is rounder due to the flanks being placed slightly outwards, which means that a significantly better cornering grip and increased safety are achieved.
Newmen grants a lifetime crash replacement of 50% on all carbon rims, even for the second or third owner. Technical specifications:
intended use : Gravel, Cyclocross, Cross Country
Material: UD carbon
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622×25
EARTH: 600mm
Inner width: 25 mm
Outer width: n/a
Rim height: kA
Offset: no
Number of holes: 28 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 35-61 mm
maximum tire pressure: 2.2 bar (61 mm) – 3.5 bar (35 mm)
Maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: kA
Features: –
Valve hole bore: 6 mm (SV)
Finish: UD matte
Colour: black with white and glossy black decals
Weight according to the manufacturer: 310g
Weight weighed: Scope of delivery: 1x NEWMEN rim 29″ Advanced SL XR25 Carbon Gravel | 28 holes
EAN:
4054571186133
MPN:
90725
