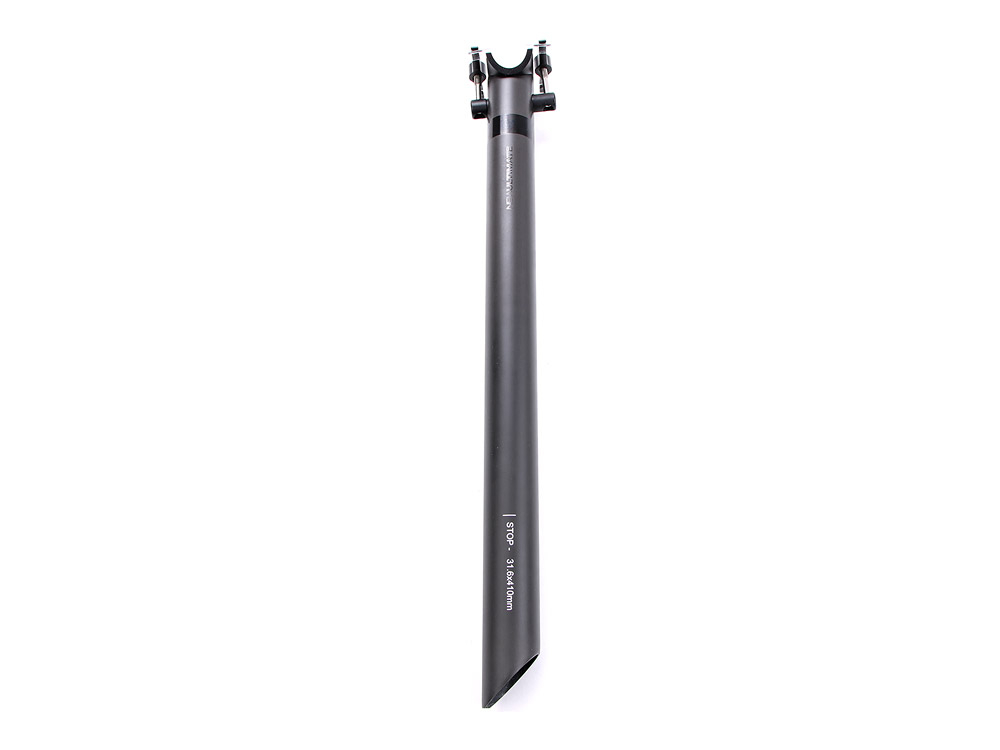

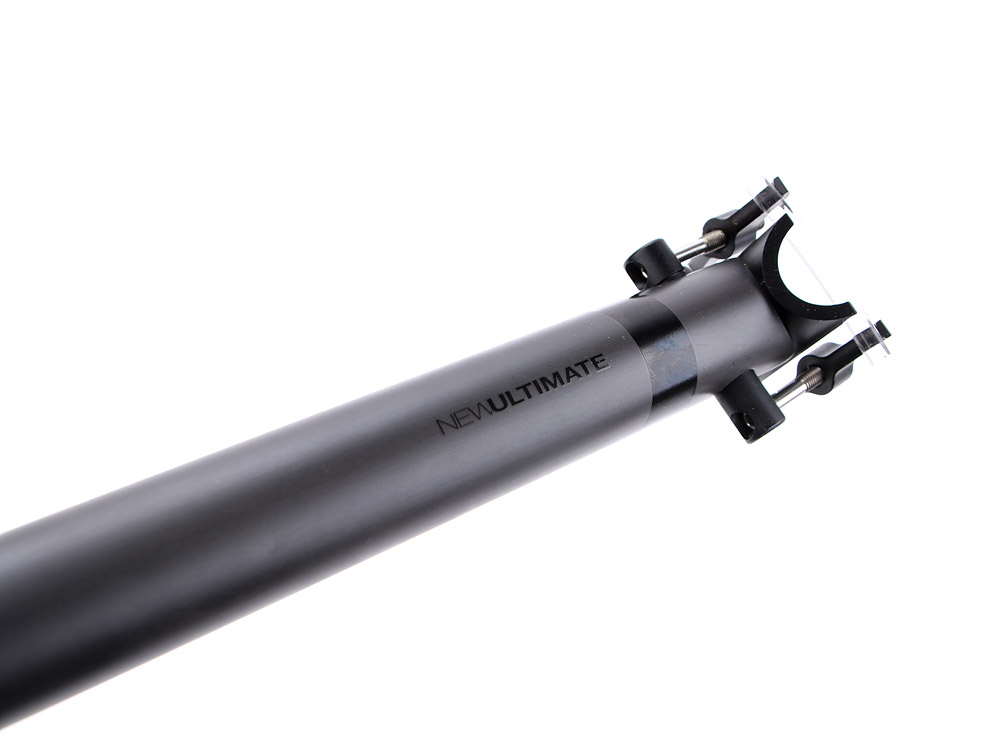

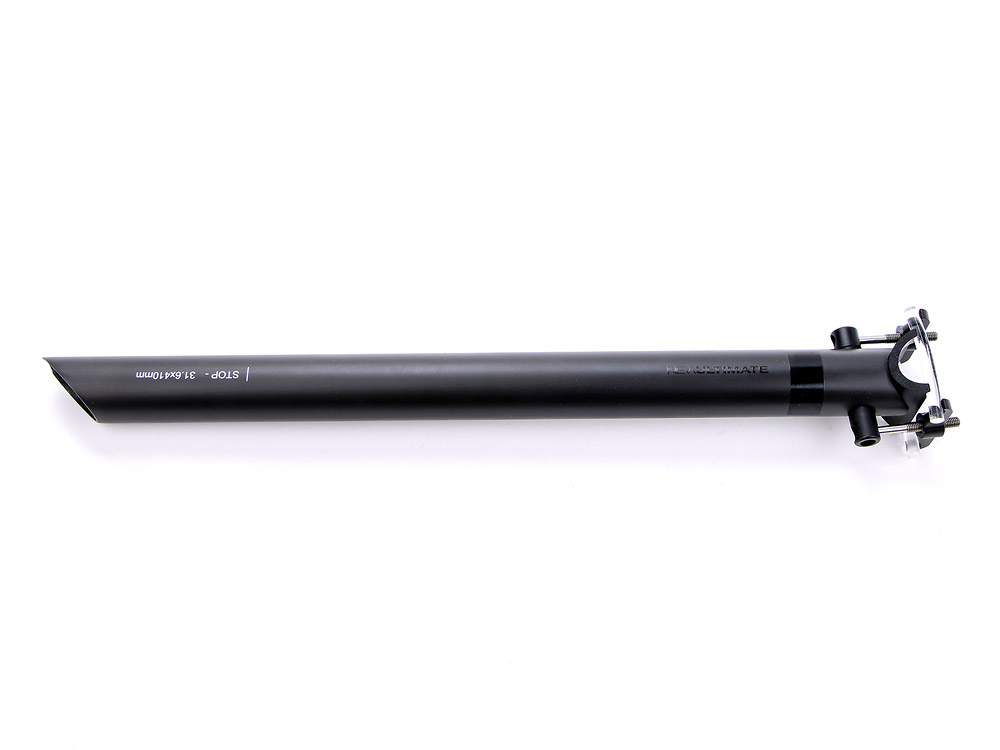

NEW ULTIMATE Seatpost EVO Carbon 30,9 mm | UD matt black 410 mm
This seat post is an evolution of the first New Ultimate carbon seat post. Above all, the structure of the carbon tube was optimized. The carbon fabric was replaced by UD carbon layers. These provide a higher strength, because the fibers can run perfectly straight and not slightly bent as in the tissue over and over again. In addition, the central area of the support was butted while the clamping area and the head of the support increased.
The Jochklemmung that clamps the saddle rack was also slightly revised and slightly lighter designed. Of course, this clamp is factory fitted with lightweight and reliable titanium bolts!Technical specifications:
intended use : MTB, road bike
Material: UD carbon, aluminum
Material screws: titanium
Diameter: 30.9 mm

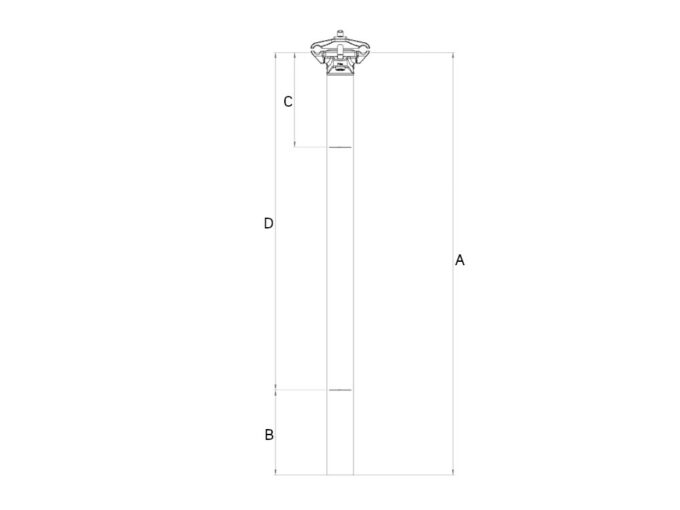

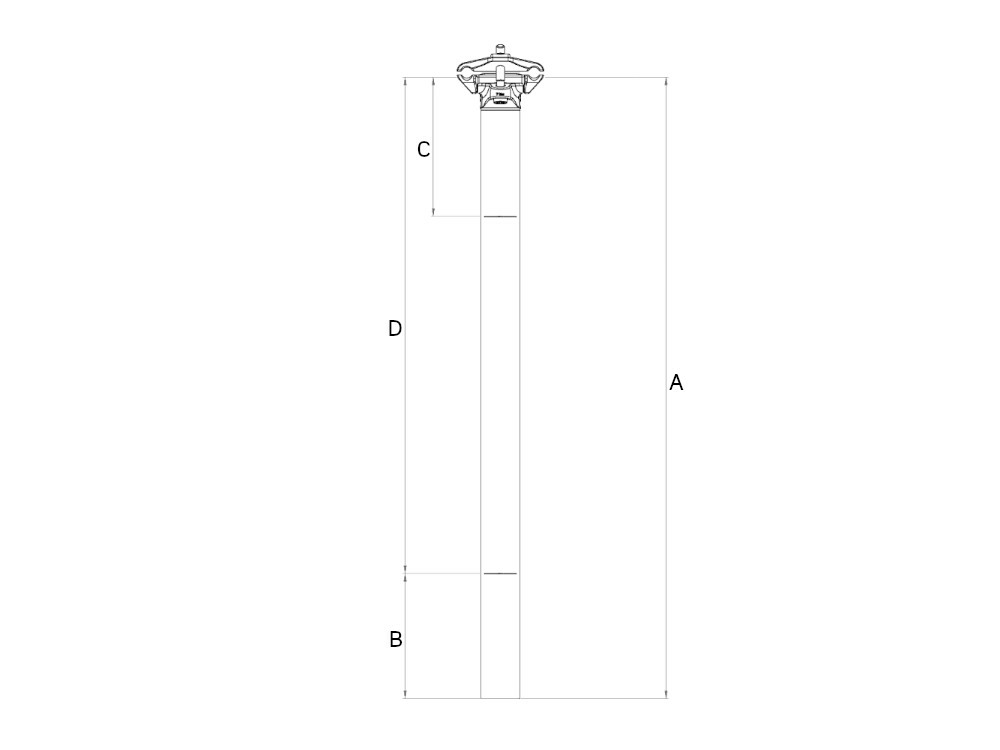

Length (A): 410 mm
Minimum insertion depth (B): 100 mm
minute possible usable height (C): –
Max. possible effective height (D): – (upper edge of saddle clamp to lower edge of saddle frame)
Offset: 0 mm
Compatibility seat stays: round (7×7 mm) and oval (7×10 mm)
Max. Driver’s weight: 90 kg (driver, clothes and possibly luggage)
Finish: UD-Carbon, matt
Color / logos: black matt
Weight according to manufacturer: 156g (27.2mm x 410mm)
Weight weighed by yourself:Scope of supply: 1x NEW ULTIMATE Seatpost EVO Carbon 30,9 mm | UD matt black 410 mm
MPN:
NU-SP309410UDMATB
