RITCHEY handlebar WCS Road Evo-Curve | Di2 ready
The Evo-Curve handlebar is equipped with flat and compact arches that allow an aggressive sitting position. A flattened top link with 4 degrees backsweep allows you to take an ergonomic grip position even on long tours and relaxed driving style. The handlebar has special surfaces in the area of the stem and the STI clamping surfaces. These are rougher and increase the friction between the components. This protects the handlebars because the attachments can be mounted with lower torque.
– short advance storage
– Lowering in double radius
– Mid section is Aero-Bar compatible
– No-slip surfaces in the clamping area
– recessed grooves for cable laying
– Compatible with Shimano Di2 EW-RS910 Bar End Junction Box
Di2 ready

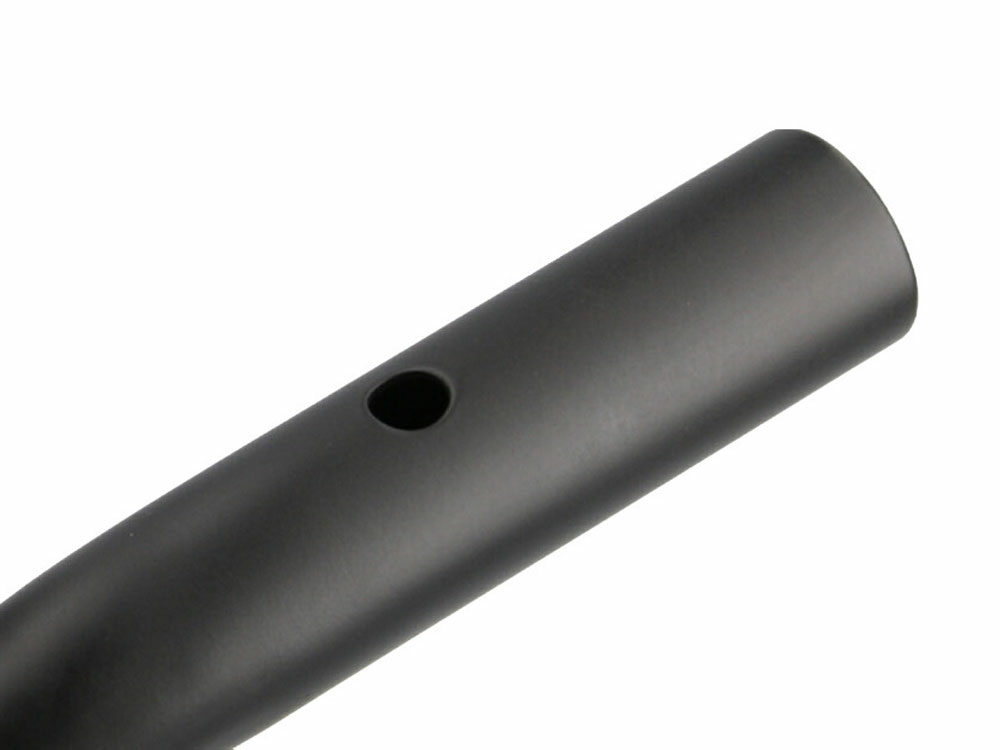

Compatible with Shimano EW-RS910 Junction internally. (Hole on the lower left side of the handlebar)Technical specifications:
intended use :
Material: aluminum 7075
Handlebar clamp Ø: 31.8 mm

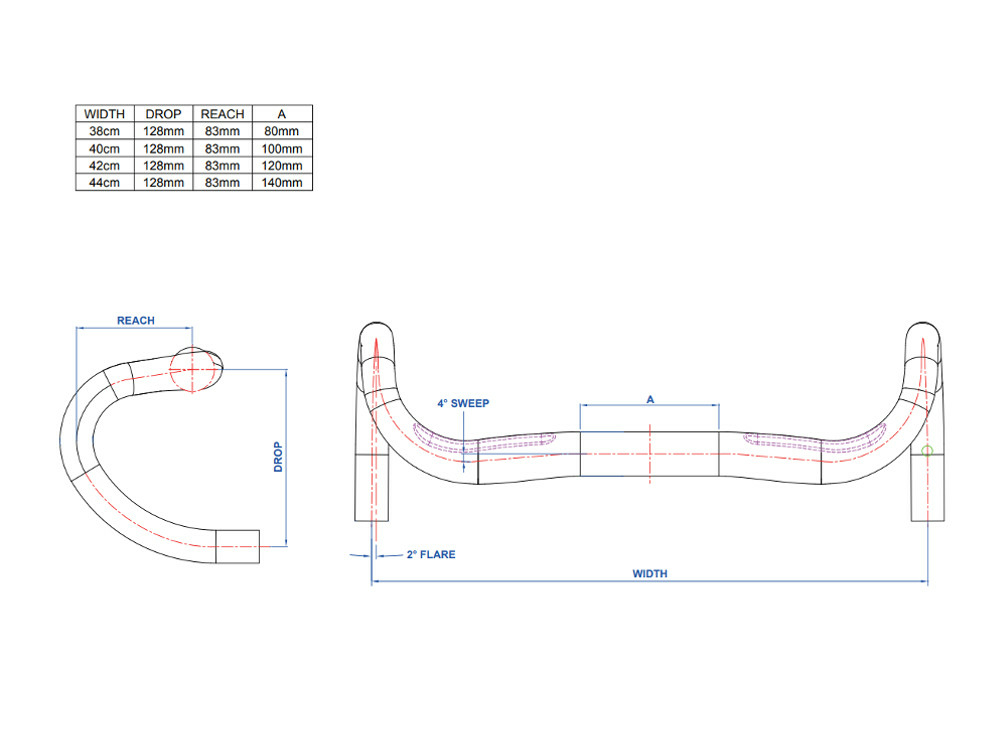

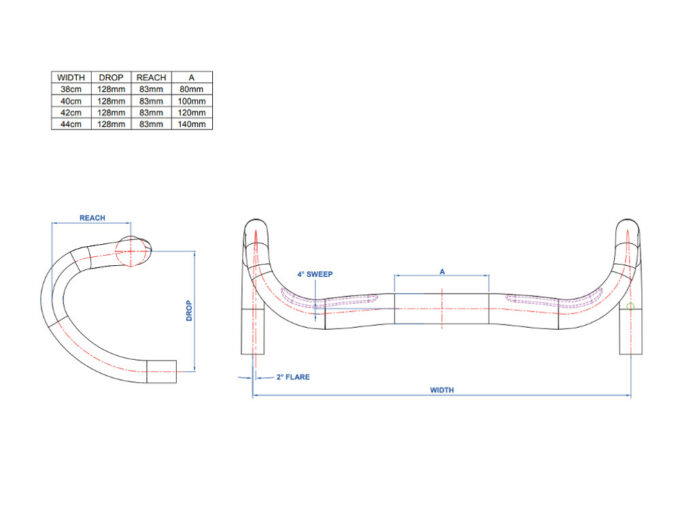

Handlebar width: 400 mm, 420 mm or 440 mm (center – center)
Pre-storage / reach: 83 mm
Lowering / dropping: 128 mm
Outside bend / flare: 2 °
Backsweep: 4 °
Max. System weight (driver, bike and luggage): 110 kg
Tightening torque max: not specified
Color: Black
Finish: matt
Weight according to the manufacturer: 253g (420mm)

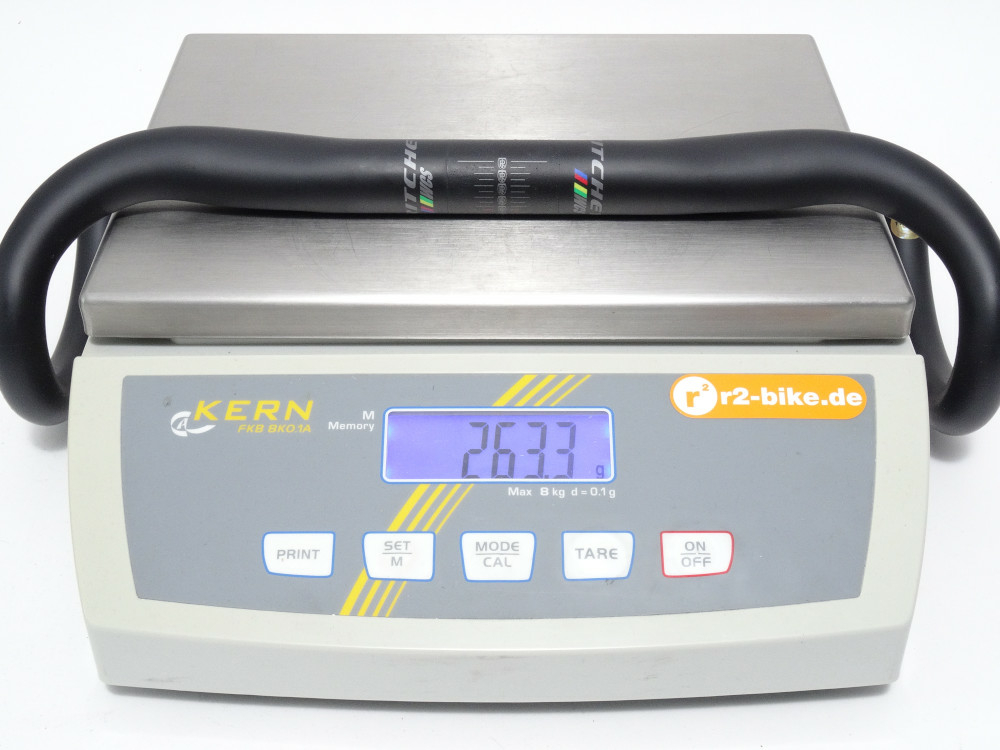

Weight weighed: 263g (420mm)Scope of supply: 1x RITCHEY handlebar WCS Road Evo-Curve | Di2 ready
