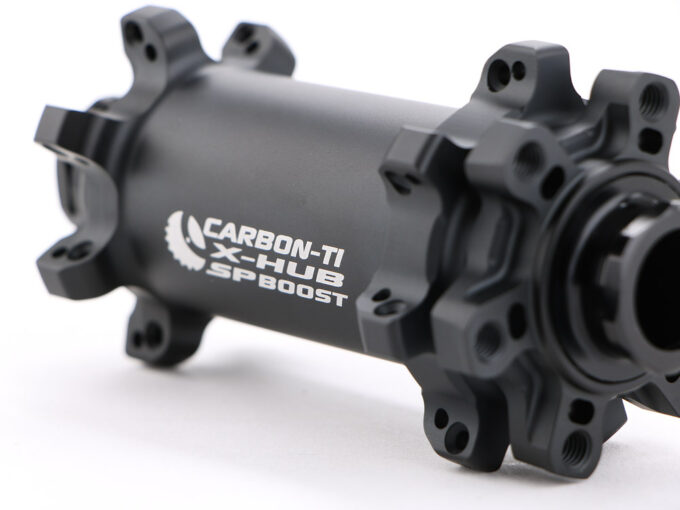

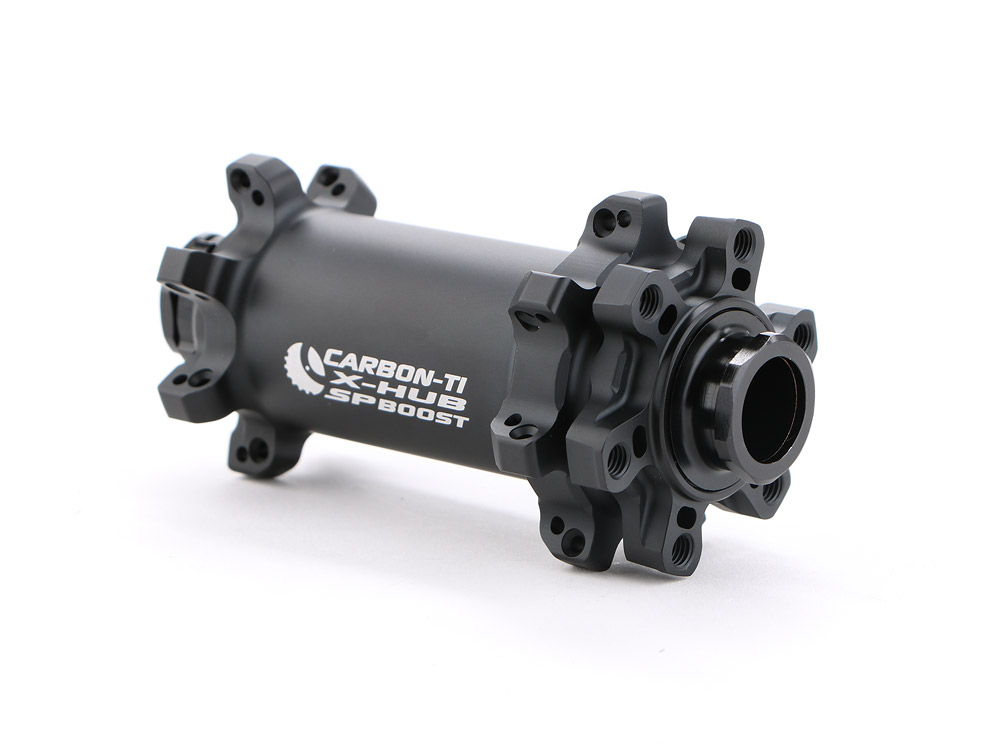

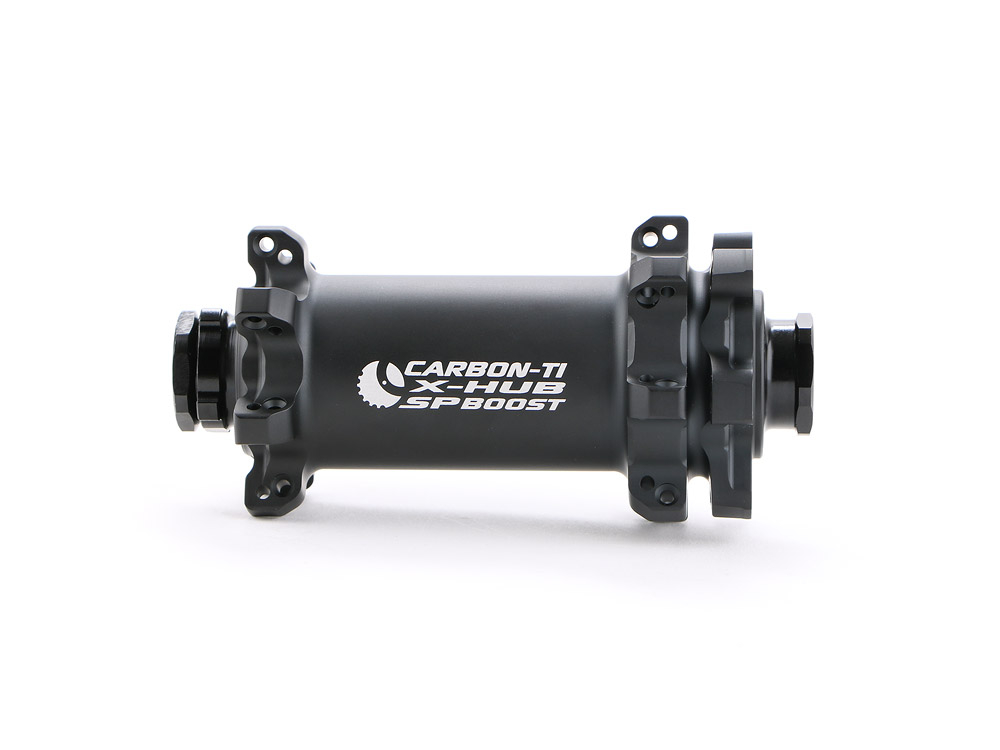

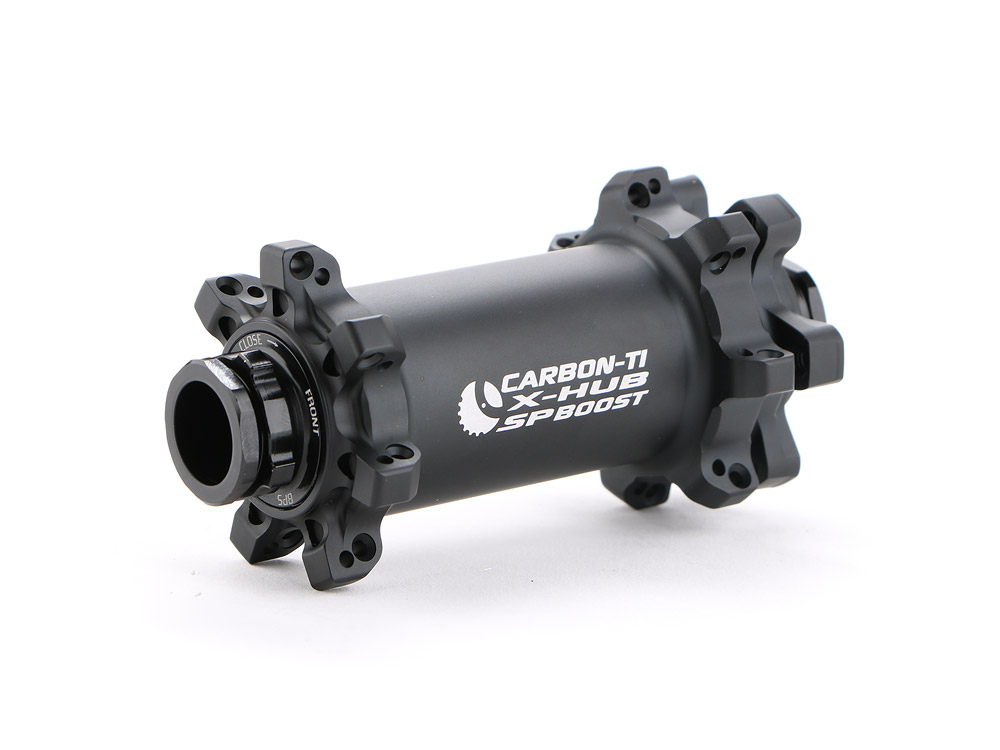

CARBON-TI front hub X-Hub SP BOOST 110 | 15×110 mm thru axle
Products from Carbon-Ti stand for lightweight construction without recklessness and compromises in stiffness. After all, all parts are driven and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.
The hub body of the X-Hub SP hub is elaborately CNC-milled and rotates around a multi-butted aluminum axis. With a diameter of 17 mm, this brings a good degree of rigidity to the hub. Two high-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axis play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The hub is designed for straight straight pull spokes. These can generate a little more rigidity. But the bigger advantage lies elsewhere. The weak point of a curved spoke is the head with its curvature. When a spoke breaks, it is mostly at this point. Spokes in particular do not have this weak point. In addition, weight can be saved because shorter versions can be used.
We would be happy to make you an offer for a complete custom wheelset with the CARBON-TI hub, spokes and rims of your choice. Please send us an email to! Technical specifications:
intended use : Cross Country, Marathon, All Mountain
Material: aluminum 7075-T6, stainless steel
axle type : 15×110 mm thru-axle Boost
Number of holes: 24, 28 or 32 holes
Brake disc mount: 6-hole (IS2000)
bearing : 2x industrial bearings (2x 61803-LLB)
Spoke type: straight pull (straight)
Max.admissible spoke tension: 1275 N
maximum system weight: no weight limit

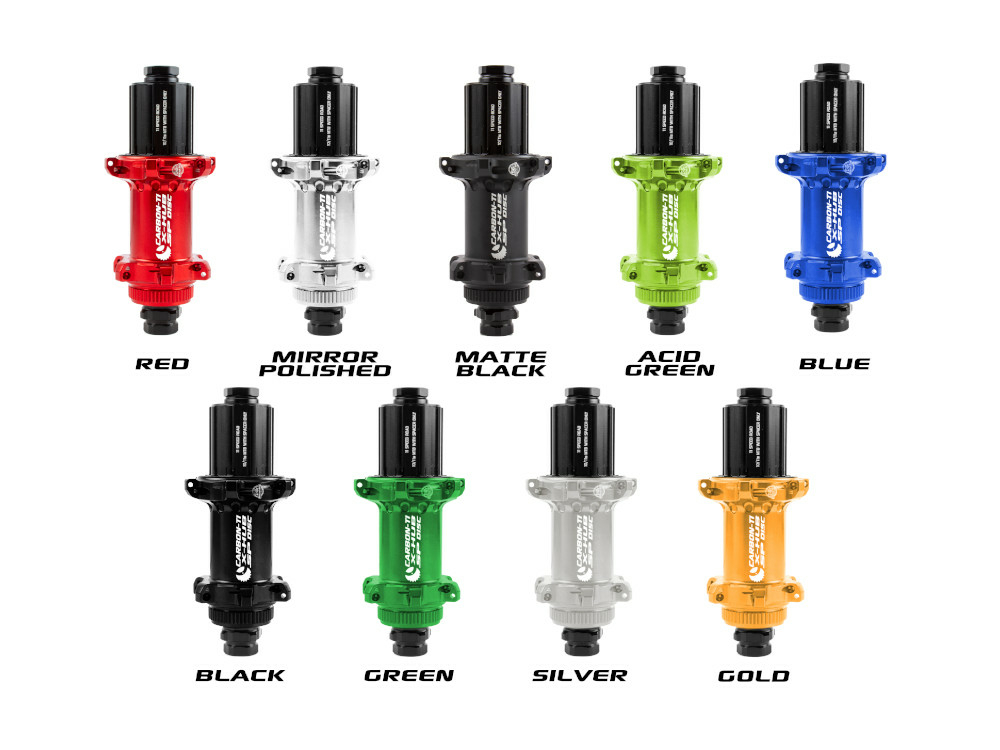

Color: black, red, gold, blue, silver, green, acid green or black matt
Weight according to the manufacturer: 93g (24 holes), 95g (28 holes), 99g (32 holes)

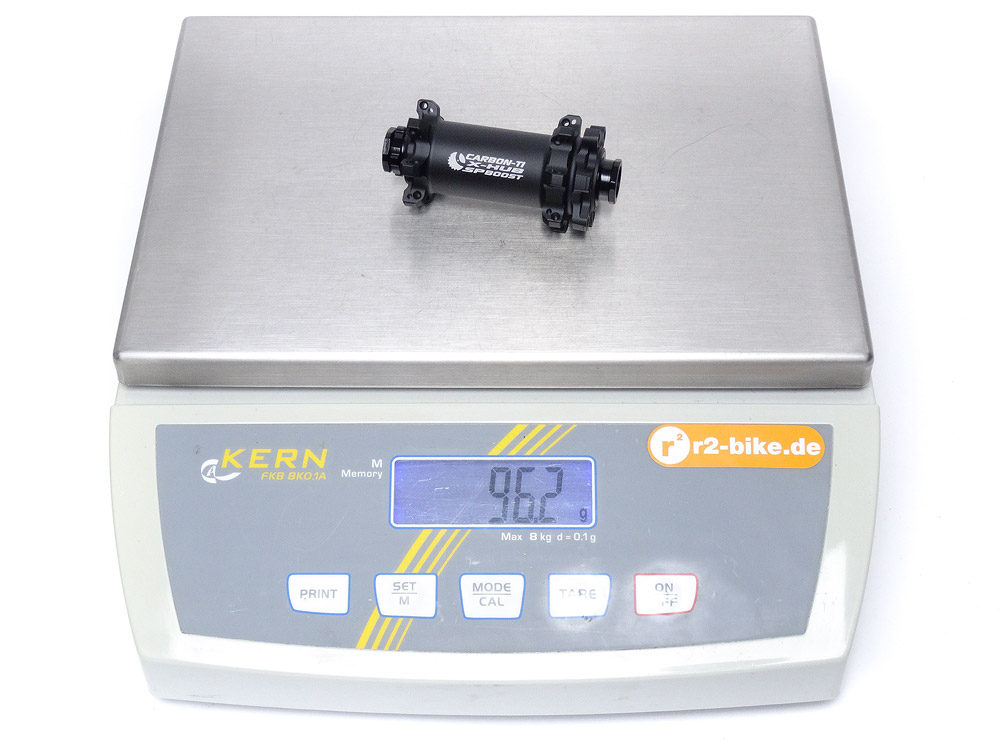

Weight weighed: 96g (28 holes) Scope of delivery: 1x CARBON-TI front hub X-Hub SP BOOST 110 | 15×110 mm thru axle
EAN:
8058268172566
